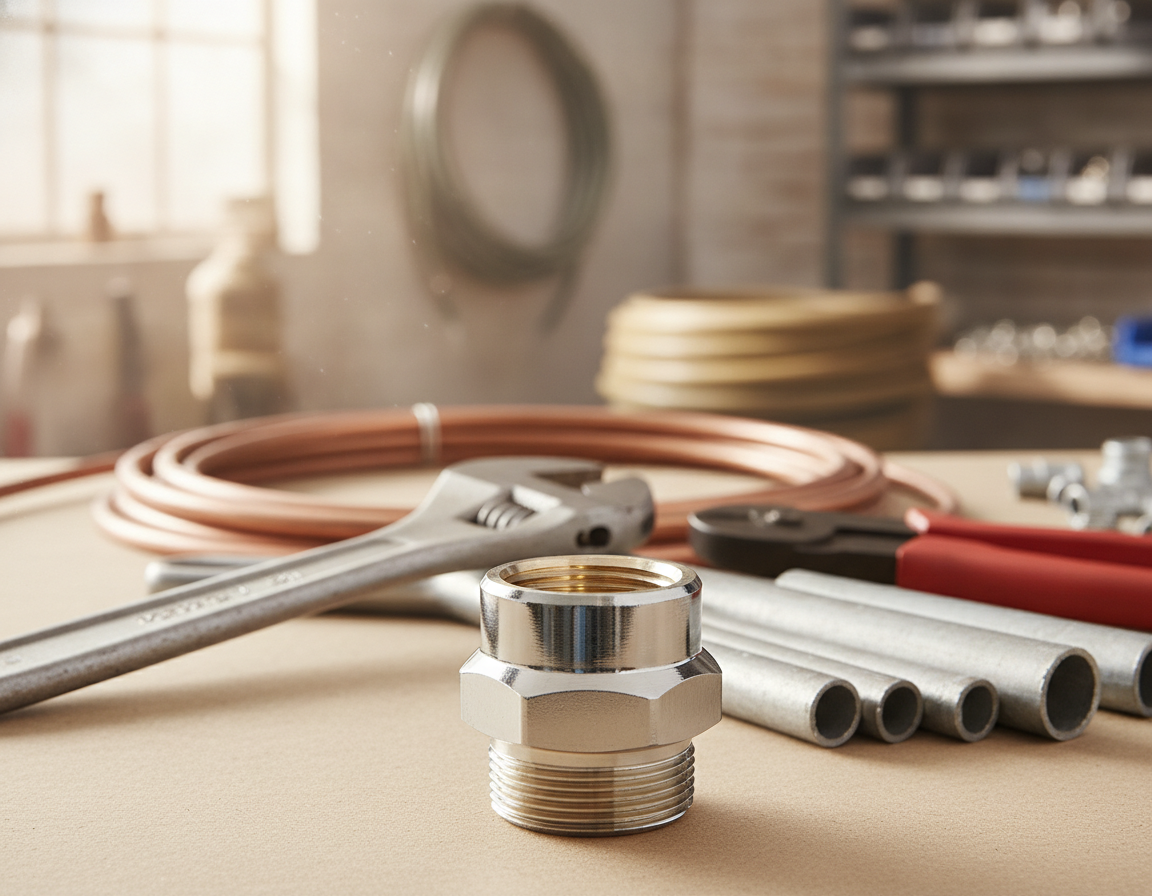

Female compression fittings provide a straightforward, reliable method for connecting pipes and tubing. They help avoid the need for solder or welded joints. This overview covers the basics of female compression fittings, highlighting how the compression nut and ferrule ensure a tight seal. It also highlights their importance in both plumbing and HVAC applications.
3/8 Compression Coupling
Selecting high-quality pipe fittings can meaningfully cut energy losses. This also helps stop refrigerant or water leaks, which can harm the environment. HVAC systems, which include components like compressors, condensers, expansion valves, and evaporators, rely on robust connections. Specifying the appropriate female compression fitting and compatible materials—such as brass, copper, stainless steel, PVC, or PEX—is critical for long-term system performance.
In plumbing, PEX or PVC with compression fittings are favored for their ease of service and low heat exposure. On the other hand, refrigeration lines require fittings that can withstand thermal fatigue and preserve a seal across a wide temperature range. InstallationPartsSupply.com and its product lines help meet these needs, stocking common sizes and parts such as ferrules and compression nuts.
Important Highlights
- Female Compression Fitting uses a nut-and-ferrule system to seal without soldering.
- Choosing the correct material—brass, copper, stainless, PVC, or PEX—prevents corrosion and failure.
- Correct fittings lower energy loss and reduce refrigerant or water leaks in HVAC and plumbing systems.
- Compression fitting selection resources and suppliers like InstallationPartsSupply.com make easier part selection.
- Inspect ferrules and tighten per manufacturer torque to ensure a long-lasting seal.
Understanding Compression Fittings And HVAC Vs Plumbing Applications
Compression fittings secure pipes and tubing without solder or welding. They work well with copper, PEX, PVC, and stainless lines where heat or flame is undesirable. Many professionals source parts from Installation Parts Supply to support consistent quality and fit.
How A Compression Fitting Works
A compression fitting relies on a nut and a ferrule olive pressed against the pipe by the fitting body. The tightening action compresses the brass ferrule or sleeve, which grips the outer pipe and forms a seal. This setup explains the common question of what is a compression fitting by showing how mechanical compression creates a leak-tight joint.
Key Differences Between HVAC And Plumbing Fittings
HVAC fittings must tolerate refrigerants, wider temperature swings, and thermal fatigue. Plumbing fittings focus on potable water, wastewater, and pressure from building systems. When comparing HVAC vs plumbing fittings, selection depends on media, service temperature, and pressure ratings.
Systems such as split systems, VRF, and rooftop units often use copper fittings and brazed joints for refrigerant lines. Plumbing work favors PEX compression and PVC for drains, where solvent welds or crimp systems are common.
Common Materials Used In Compression Fittings
Copper fittings are valued for excellent thermal conductivity and corrosion resistance. Brass parts, including the brass ferrule, resist wear and are common in many compression fittings. Stainless steel is often chosen for corrosive or high-pressure environments.
PEX compression is often selected for domestic water lines because it withstands freeze-thaw cycles and is flexible. PVC remains a low-cost option for drains and certain chilled-water circuits when pressure is low.
| Component Material | Primary Use | Advantages | Restrictions |
|---|---|---|---|
| Copper Material | Refrigerant lines, potable water | Durable, conductive, and easy to solder | Costlier with some risk of physical damage |
| Brass Parts | Compression nuts, fitting bodies, and ferrules | Machinable and resistant to corrosion | May react with incompatible metals |
| Stainless steel components | Corrosive or high-pressure systems | Extremely durable and corrosion-resistant | More expensive and harder to machine |
| PEX | Residential hot/cold water | Flexible and resistant to freeze-thaw cycles | Must be matched with proper PEX fittings |
| PVC | Drains and low-pressure chilled water | Economical with straightforward installation | Not for high temperature or pressure |
Why Choosing The Right Fitting Matters For Efficiency And Leaks
Choosing the right fitting reduces leak risk and maintains system pressure. Within refrigeration systems, a poor joint can release refrigerant and lower efficiency. Correctly matched fittings and seals cut maintenance and lower energy waste.
Selecting the correct ferrule olive and matching copper fittings or PEX compression hardware limits the risk of galvanic corrosion and thermal fatigue. That selection strategy improves service life and keeps HVAC and plumbing systems running efficiently.
Female Compression Fitting Basics
A female compression fitting seals a pipe or tube end when a nut compresses the ferrule olive against the fitting body. This design enables tight connections without soldering, making it common in plumbing and HVAC. Unions and adapters enable quick disassembly for service or instrument changes.
Basic Definition And Common Fitting Styles
A common setup uses a female compression nut, a ferrule olive, and the fitting body. The nut threads onto the fitting body and compresses the ferrule to grip the tube. Common systems include unions, straight fittings, or elbow bodies to adapt direction and access during maintenance.
Materials And Compatibility
Brass and copper are commonly used for refrigerant fittings and hot-water lines due to their ability to tolerate thermal cycles and resist deformation. Stainless steel suits high-pressure or corrosive environments. PVC and PEX are used for condensate and domestic water runs, but they require proper inserts or specific ferrules for secure joints.
Where Female Compression Fittings Are Commonly Used
In plumbing, female compression fittings link stops, valves, and supply lines without solder. For HVAC systems, technicians use them on refrigerant fittings between compressor, condenser, and evaporator where service access is critical. Instrumentation and gas lines often rely on compression parts for leak-tight, serviceable connections.
Comparing Female Compression Fittings, Male Fittings, And Adapters
Female fittings are designed to accept a male end and form the receiving thread, while a 3 8 Male Compression Fitting provides that mating male component for tubing or ports. A 3/8 Valve Adapter helps technicians interface service valves and gauges to the system. Matching materials helps prevent galvanic corrosion and keeps joints reliable under pressure and thermal change.
| Fitting Component | Common Material | Typical Use | Maintenance Note |
|---|---|---|---|
| Compression nut | Brass alloy | Water supply lines and valve fittings | Change it if cracked or stripped |
| Compression ferrule | Brass/stainless steel | Seals around copper, brass, or compatible PEX | Often not reusable after compression |
| Compression fitting body | Machined brass or stainless | Refrigerant service and instrumentation | Match to refrigerant type and pressure rating |
| 3/8 Male Compression Fitting | Copper and brass | Small-diameter line connection to female ports | Verify seat and thread compatibility |
| 3/8 valve adaptor | Brass | Gauge and manifold connections | Use correct seals for refrigerant service |
| Installation Parts Supply source | Material options vary | Supplier for compatible kits and replacement parts | Use compatible replacement parts for durability |
Types, Sizes, And Related Adapters For Plumbing And HVAC Projects
This section delves into the various fitting types, sizes, and adapters essential for plumbing and HVAC projects. Installers use couplings, elbows, unions, and adapters to manage line routing, component isolation, and service access. Selecting the proper parts significantly impacts system performance, including pressure rating, temperature limits, and reliability.
Compression couplings and compression unions enable the creation of removable joints for maintenance and testing. Couplings work well for straight connections, while compression unions are preferred for components that need to be disconnected without disrupting the line. For short runs, a 3/8 Compression Coupling is often used in instrumentation and refrigeration applications.
Elbows and adapters are necessary for tubing routing around obstacles and for connecting different types of fittings. A 3 8 Male Compression Fitting may connect to a female port or adapter, facilitating the integration of service valves and gauges. Installation Parts Supply catalogs provide a wide range of these components, supporting quick access on job sites.
Picking the correct fitting size matters, depending on the tube’s outside diameter and the ferrule and nut set. Ensure that the female compression fitting size matches the tube OD to prevent leaks. For 3/8-inch applications, verify ferrule compatibility and torque specifications. Before final selection, check the system’s maximum pressure and temperature ratings before making a final selection.
Parts like the Max Adaptor and 3/8 Valve Adapter help with connecting gauges, service ports, and small refrigerant lines. These adapters simplify the process of charging and diagnostics in HVAC systems. In compact HVAC systems, a 3/8 Valve Adapter is commonly used to link manifold hoses to service valves on compact systems.
Material choice balances between durability and corrosion resistance. Stainless steel provides strong corrosion resistance and durability, making it suitable for harsh environments. Brass and copper are good for refrigerant circuits and heat transfer lines due to their balance of machinability and corrosion protection. PEX and PVC suit low-pressure condensate and water lines but not for high-pressure refrigerant service.
The environmental effect of fittings depends on leak prevention and recyclability. Proper metal compression fittings help limit refrigerant emissions and can be recycled at the end of their life. Buying quality parts from reputable suppliers reduces failures and minimizes long-term environmental risk.
The comparison below helps buyers choose between common options by application, pressure, temperature, and reusability.
| Fitting Type | Usual Application | Approximate Max Pressure | Typical Temperature Range | Reusability |
|---|---|---|---|---|
| Compression Coupling brass | Instrumentation, small water lines, and refrigerant service | As high as 3,000 psi when specified | Approximately -65°F to 250°F | Limited, because ferrules are often replaced |
| Brass or stainless compression union | Removable service connections | Around 2,500 psi depending on spec | -65°F to 300°F | High, because it is designed for disconnects |
| 3/8 Compression Coupling | Small-diameter water, instrument, and refrigerant lines | Rating varies by system and material | Verify material specification for HVAC use | Some reuse possible, but service replacement is common |
| 3 8 male compression connector | Adapter for gauges and service valves | Rated for refrigerant service when brass/stainless | Works across common HVAC cycles when specified | Reusable if undamaged |
| Specialty Max Adaptor | Specialized coupling for gauge and valve interfaces | Designed for higher service-tool demands | Handles typical HVAC thermal cycling | Reusable; built for repeated service |
| PVC and PEX fittings | Condensate drains and low-pressure water service | Low, with no high-pressure refrigerant use | 32°F to 140°F typical | Reusable in some systems; limited life under UV |
When ordering, check Installation Parts Supply or other reputable distributors for part numbers, material options, and pressure ratings. Confirm that the chosen 3/8 Valve Adapter or Max Adaptor matches both the tubing OD and the service fitting type to avoid mismatches on site.
Best Practices For Installation And Maintenance
Good installation begins with clean, square pipe ends and the right parts. For HVAC refrigerant lines, use copper and brass. For low-pressure condensate or chilled water, PVC or PEX is best. Always follow manufacturer specs and ASME B31.5 to minimize energy loss and leaks.
Installing compression fittings correctly
1. Start by cutting and deburring the tube to a square face. 2. Then slide the nut and ferrule onto the pipe in that order. 3. For PEX or thin-wall plastic tubing, insert pipe inserts to keep the tube round before assembly. 4. Finger-tighten first the nut, then use the two-wrench technique to finish the joint.
Useful installation tools and methods
Use two wrenches to hold the fitting body and turn the nut to prevent tube twist. Observe torque recommendations from the fitting maker or Installation Parts Supply when available. Standard practice is to snug by hand, then add a limited number of wrench turns.
Using pipe inserts correctly
Pipe inserts should be used with soft plastic tubing like PEX or thin-wall PVC to prevent ovalization and ensure a leak-free seal. Avoid inserts in solid copper or thick-walled metal tubing, where inserts can interfere with proper ferrule compression.
Common errors and ferrule removal
Avoid under-tightening and over-tightening. Loose fittings leak; over-tightening deforms the ferrule and can make ferrule removal difficult. Most ferrules should be treated as single-use parts; plan to replace them when disassembling a joint.
Ferrule removal procedure
Shut off the supply and relieve pressure first. Hold the fitting body with one wrench while loosening the nut with a second. Remove the nut and slide out the ferrule. If the ferrule is stuck, apply penetrating oil, use a ferrule puller, or carefully cut the ferrule off without nicking the pipe.
How to install a 3/8 Valve Adapter
For compact 3/8″ service connections, prepare the tubing the same way and follow the two-wrench technique. Most 3/8 Valve Adapter installation steps mirror larger fittings but require careful attention to torque guidance to avoid crushing the tube or the adapter threads.
Routine inspection and maintenance
After bringing the system up to pressure, inspect joints for weeps and tighten slightly if needed. Schedule routine inspections for corrosion and thermal fatigue, mainly on refrigerant circuits. Try not to locate compression joints where vibration will loosen them over time.
| Installation Step | Task | Installer Tip |
|---|---|---|
| Preparation | Cut square, deburr, clean pipe | Use proper cutting and deburring tools |
| Component Assembly | Slide on the nut and ferrule, then insert into the fitting | Use inserts where plastic tubing may deform |
| Tighten | Tighten by hand, then finish with two wrenches | Follow manufacturer torque guidance |
| Pressure Test | Apply pressure and inspect for leaks | Inspect carefully and adjust only when safe |
| Routine Service | Check routinely and change ferrules when joints are opened | Keep spares from Installation Parts Supply for quick repairs |
Closing Notes
Choosing a suitable compression fitting is important for plumbing and HVAC work. The material choice, whether brass, copper, stainless steel, PVC, or PEX, must align with the service type. This helps provide reliability and extends system life. Well-matched parts and sound installation help cut energy losses and refrigerant leaks, preserving performance and environmental health.
Compression fittings provide a leak-free, solder-free solution. They include a nut, ferrule, and body. For a dependable seal, follow these steps: square-cut and deburr the tubing, use the two-wrench technique, and replace ferrules when reused. These steps support long-lasting, leak-tight connections in various applications, from copper piping to instrumentation.
For particular installations, such as 3/8″ lines, 3/8 Compression Coupling, or 3/8 valve adapters, make sure you match size and pressure ratings to the task. Reliable parts from trusted suppliers are important. Installation Parts Supply guidance can help in finding compatible fittings and adapters. Regular inspections and proper selection maintain system efficiency and compliance.
In summary, dedicating time to material selection and correct assembly is important. That helps create durable, leak-free connections. It helps provide optimal performance, fewer repairs, and less environmental harm.
